Product Category
RVH Chip/SMD Aluminum Electrolytic Capacitor
Product Name:RVH Chip/SMD Aluminum Electrolytic Capacitor

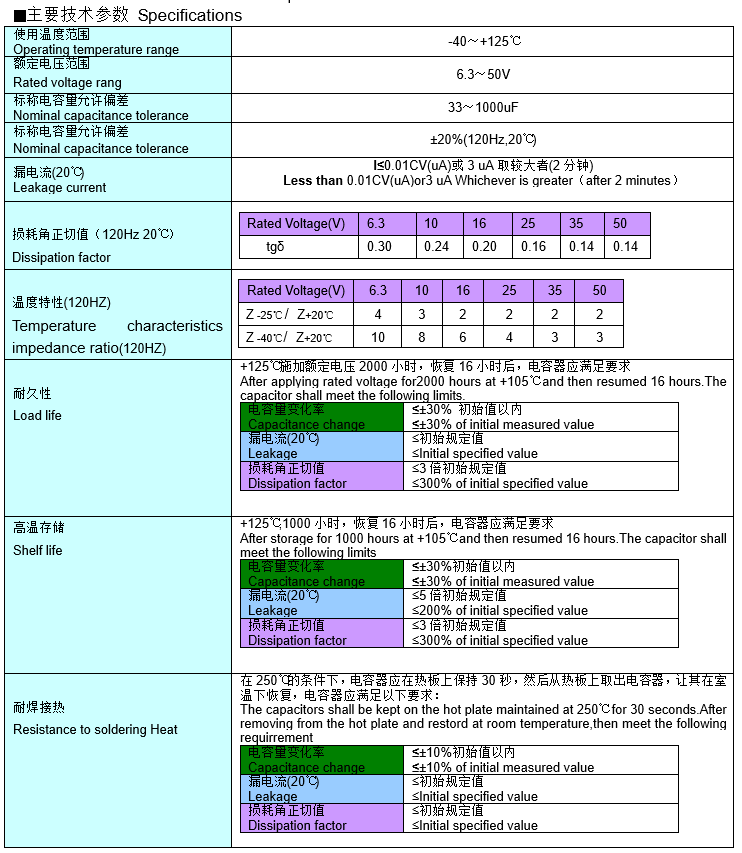

Operating Temperature Range°C:-40~+125°C
Working Voltage Range:6.3V~50V
Capacitance Range:10uF~470uF
Load life:2000Hours
  RVH High Temperature Chip/SMD Aluminum Electrolytic Capacitor
 • Reflow soldering available for reflow soldering
 • Available for high density surface soldering
 • Life time:125°C 2000Hours

 • Adapted to the ROHS / REACH directive

Related Voltage: 6.3V, 10V, 16V, 25V, 35V, 50V.
Related Capacitance: 10uF,22uF,33uF,47uF,68uF,100uF, 220uF, 330uF, 470uF.

Chip/SMD Aluminum Electrolytic Capacitor Extremely Low Impedance.
